Product Description
Craft professional-quality live mixes

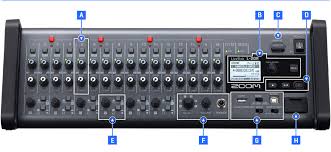

The LiveTrak L20R makes crafting pro-quality live mixes easy. Each of its 20 discrete channels features a 3-band mid-parametric EQ and 20 built-in effects. Sixteen combo jacks accommodate both XLR and 1/4″ connectors and are loaded with great-sounding mic preamps and dedicated compressors. Channels 1–2 offer hi-Z inputs for your electric guitar or bass, while channels 17/18 and 19/20 have TRS and RCA connectivity for keyboards and other audio devices. You also get clear 12-segment LED metering for keeping an eye on your levels.
Produce great-sounding recordings
Recording your entire band has never been simpler, thanks to the Zoom LiveTrak L20R. Twenty-two individual tracks are conveniently captured onto an SD card at 24-bit/96kHz. You can then mix and overdub directly within the L20R using its onboard effects or transfer the entire project to your DAW for further editing and processing. If you’re performing live, you can record and mix your show simultaneously. We found that the L20R makes recording incredibly fast and easy.
Create six custom headphone mixes
With the LiveTrak L20R, you don’t need separate personal monitor mixers — the monitoring is built in. Each of its six discrete monitor outputs provides a custom mix, so each member of your band can create and save their own. The L20R’s headphone amplifier delivers lots of volume — even drummers won’t have a difficult time hearing.
More than a mere digital mixer
The Zoom LiveTrak L20R is equipped with several operation modes. Put it in Audio Interface mode and the L20R transforms into a 22-in/4-out USB interface for your Mac, PC, or iOS device with flexible routing options. In USB Host mode, you can transfer projects and files to a connected USB flash drive. Card Reader mode allows you to transfer files to and from your computer.
Take command from your iPad
The LiveTrak L20R enables the FOH engineer and six musicians to take command of their own mix via the Remote Mixer app for iPad. With simple gestures, you can adjust fader levels, EQ settings, channel effects, and more — from anywhere in the venue.
