Product Description
JBL 305P MkII 5″ Powered Studio Monitor
The JBL 305P MkII 5″ Powered Studio Monitor is a bi-amplified reference monitor with next-generation drivers, offering high detail, precise imaging, a wide sweet spot, and a remarkable dynamic range to enhance the mix capabilities of any modern workspace. The magnetically-shielded 305P MkII features dual 41W Class-D amplifiers, which power the 5″ low frequency woofer and woven-composite 1″ neodymium tweeter. The combined output of the woofer and tweeter offer a frequency response of 49 Hz to 20 kHz with a peak SPL of 108 dB.

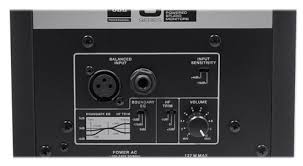

The monitor features JBL’s Image Control Waveguide technology for accurate audio reproduction and JBL’s Slip Stream port design for improved bass response. The 305P MkII is equipped with a boundary EQ for controlling the low frequency response when placed near a wall, as well as a 3-position HF trim switch. To ensure flexible connectivity, JBL included a balanced XLR input and a balanced 1/4″ TRS input, both of which feature dented level control. Other features include a selectable input sensitivity switch that ensures compatibility with a range of signal sources. The JBL 305P MkII ships with a power cord.
-
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- High-quality JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 112W of power for high output and dynamic range
- Boundary EQ settings compensate for low-frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences
- Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4 dBu / -10 dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
SPECIFICATIONS
- Powered:Yes
- Power Configuration:Bi-amped
- LF Driver Size:5″ woofer
- LF Driver Type:Cone
- HF Driver Size:1″ tweeter
- HF Driver Type:Soft dome
- LF Driver Power Amp:41W
- HF Driver Power Amp:41W
- Total Power:82W Class D
- Frequency Response:49Hz-20kHz (±3dB), 43Hz-24kHz (-10dB)
- Crossover Frequency:1725Hz
- Maximum Peak SPL:108 dB SPL
- Input Types:1 x XLR, 1 x 1/4″ TRS
- Enclosure Type:Ported
- Enclosure Material:15mm Medium-Density Fiberboard
- Height:11.7″
- Width:7.3″
- Depth:9.1″
- Weight:10.43 lbs.
- Manufacturer Part Number:305PMKII
