NS-777 Yamaha Floor standing Home theater Speakers with powerful sound and beautiful design

3-way/4-driver Bass Reflex Speaker System

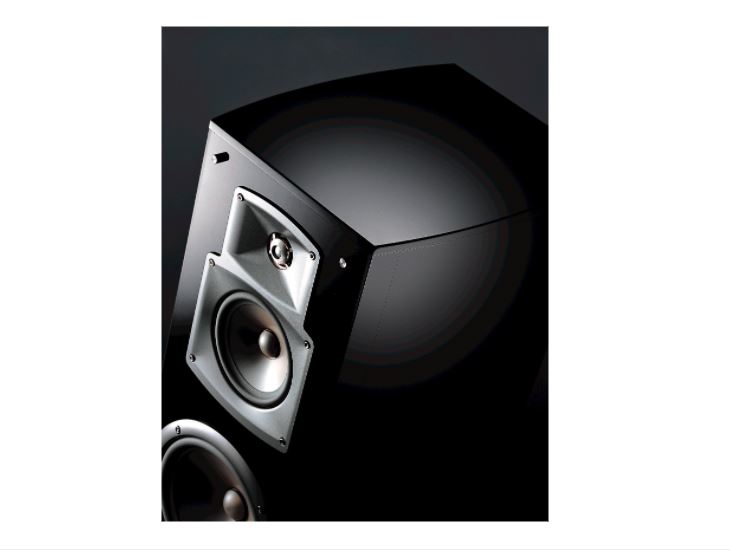

Yamaha’s NS-777 speaker system has been designed specifically for home theater applications. The floor standing speaker is a bass reflex design that can be used for main channels and incorporates a pair of 8″ polymer-injected mica diaphragm (PMD) cone woofers, a 5″ midrange cone driver and a 1” aluminum dome tweeter. For improved imaging, the midrange and tweeter utilize Yamaha’s exclusive waveguide horns.

Waveguide Horn

Unlike most homes, movie theaters use sound absorbing materials on walls and ceilings. The result is that the sound reaching your ears is the sound wave produced by the speakers rather than reflected off the walls. Yamaha has created waveguides that greatly reduce reflected sound and increase the proportion of directly generated sound waves reaching your ears. The result is a clear and precise sense of sound direction and placement.

Internally Wired with Monster Cable™

Yamaha has chosen to ensure optimum sound quality by internally wiring some of the components with Monster Cable™. This ensures a clean, clear signal from the crossover network to the speaker drivers.

Speaker Stands Included

Yamaha’s matching speaker stands provides the solid footing necessary for full floor contact, enhanced stability, and minimal vibration resonance. The stands also provide an attractive counterpoint to the cabinet.

Magnetic Shielding

The speaker is magnetically shielded, so it can be placed on a TV or video monitor without degrading the picture via stray magnetic fields.

Bi-wiring Capability

To further maintain signal purity, Yamaha provides bi-wiring capability for the NS-777 speakers. There are separate +/- terminals for the woofer(s) and other driver(s). The separation reduces modulation distortion and better sound quality.

Performance Enhanced by a Handsome Cabinet

The EF series speakers are enclosed in an elliptical form cabinet with a high gloss black piano finish which provides solid construction with minimal sound diffraction.

New Grille Design

New grille design and grille cloth provide an attractive and acoustically transparent protective cover for the drivers.

Other Features

・TYPE: 3-way, 4-speaker, bass reflex, magnetically shielded floor standing tower

・DRIVER COMPLEMENT:

・Dual 8” polymer-injected mica diaphragm (PMD) woofers

・5” cone midrange with waveguide horn

・1” aluminum dome tweeter with waveguide horn

・INPUT POWER: 100 watts nominal, 250 watts music power

・FREQUENCY RESPONSE: 30 Hz-35 kHz

・SENSITIVITY: 89 dB / 2.83 V / 1 m

・IMPEDANCE: 6 ohms

・DIMENSIONS: (W x H x D) 10-7/8” x 43-5/16” x 15-3/8”

・WEIGHT: 53.8 lbs.
